200MHz fixed-point digital signal processor with a 32-bit data bus width and TMS320 core architecture. Features 256KB RAM and 64KB ROM, operating from a 1.55V to 1.65V supply. This surface-mount BGA package offers 8 I/Os, 6 channels, and 1 A/D converter, with an operating temperature range of -40°C to 85°C.
Frequency200MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320VC5509AZHH technical specifications.
General
| Package/Case | BGA |
| Core Architecture | TMS320 |
| Data Bus Width | 32b |
| Frequency | 200MHz |
| Height | 0.9mm |
| Interface | I2C |
| Lead Free | Lead Free |
| Length | 12mm |
| Max Frequency | 200MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 64KB |
| Memory Type | ROM |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.65V |
| Min Supply Voltage | 1.55V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 32 |
| Number of Channels | 6 |
| Number of I/Os | 8 |
| Package Quantity | 160 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 256KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TMS320C55x |
| Weight | 0.011916oz |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TMS320VC5509AZHH Datasheet
Download the complete datasheet for Texas Instruments TMS320VC5509AZHH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

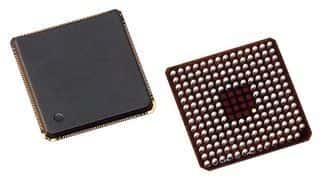

Product Images
