32-bit fixed-point digital signal processor (DSP) operating at 160MHz, delivering 320 MIPS performance. Features a TMS320 core architecture with 320KB RAM and 32KB ROM. Surface mountable in a LFBGA package, supporting an operating voltage range of 1.55V to 3.6V with a maximum operating temperature of 85°C. Includes 8 programmable I/O pins and is designed for automotive applications.
Frequency160MHz
PackageLFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TMS320VC5510AGGW1 technical specifications.
General
| Package/Case | LFBGA |
| Core Architecture | TMS320 |
| Data Bus Width | 32b |
| Frequency | 160MHz |
| Lead Free | Contains Lead |
| Max Frequency | 160MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 32KB |
| Memory Type | SDRAM, EPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.55V |
| Mount | Surface Mount |
| Number of Bits | 32 |
| Number of I/Os | 8 |
| Number of Programmable I/O | 8 |
| Operating Supply Voltage | 1.6V |
| Package Quantity | 126 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 320KB |
| RoHS Compliant | No |
| Series | TMS320C55x |
| Weight | 0.018663oz |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments TMS320VC5510AGGW1 Datasheet
Download the complete datasheet for Texas Instruments TMS320VC5510AGGW1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

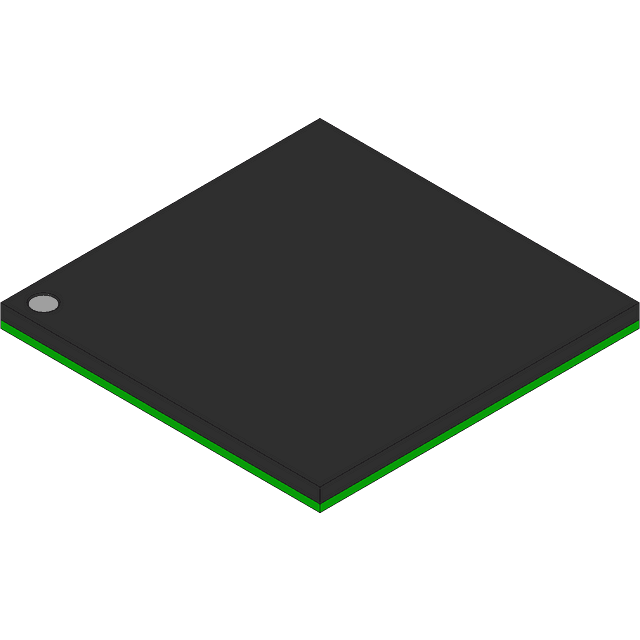

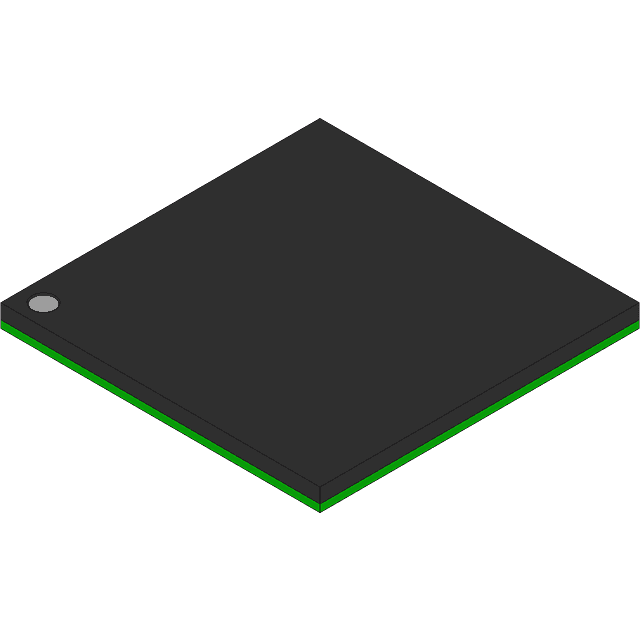

Product Images
