TEXAS INSTRUMENTS

TMS32C6415EZLZ5E0

Datasheet

500MHz 32b DSP, FCBGA, 128KB SDRAM, PCI Interface

Texas Instruments

TMS32C6415EZLZ5E0

Name: TMS32C6415EZLZ5E0 Texas Instruments
Brand: Texas Instruments
SKU: TMS32C6415EZLZ5E0

500MHz 32b DSP, FCBGA, 128KB SDRAM, PCI Interface

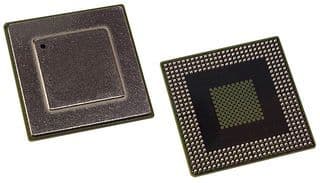

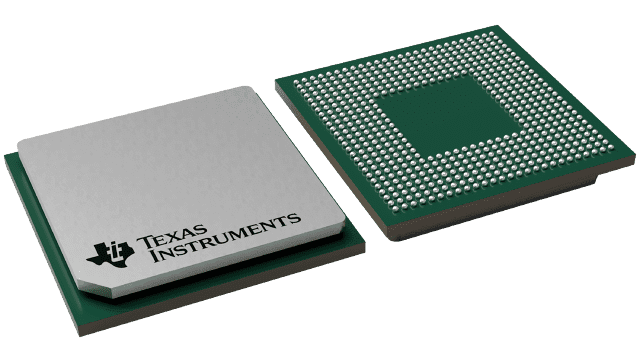

500MHz fixed-point digital signal processor featuring a 32-bit data bus width and TMS320 core architecture. This surface mount component utilizes an FCBGA package with 16 I/Os, including 16 programmable I/Os, and supports PCI interface. It offers 128KB of SDRAM memory and operates within a voltage range of 1.14V to 3.46V, with a typical operating voltage of 1.2V. The processor is designed for operation between 0°C and 90°C and is RoHS compliant.

Frequency500MHz

PackageFCBGA

MountingSurface Mount

Quick Jump:

Technical Specifications

Texas Instruments TMS32C6415EZLZ5E0 technical specifications.

General

Package/Case	FCBGA
Core Architecture	TMS320
Data Bus Width	32b
Frequency	500MHz
Height	2.65mm
Interface	PCI
Lead Free	Contains Lead
Length	23mm
Max Frequency	500MHz
Max Operating Temperature	90°C
Max Supply Voltage	3.46V
Memory Size	128KB
Memory Type	SDRAM
Min Operating Temperature	0°C
Min Supply Voltage	1.14V
Mount	Surface Mount
Number of I/Os	16
Number of Programmable I/O	16
Operating Supply Voltage	1.2V
Package Quantity	60
Packaging	Tray
Radiation Hardening	No
RoHS Compliant	Yes
Series	TMS320C6414T/15T/16T
Weight	0.109159oz
Width	23mm
