Single-channel, Class-D audio amplifier delivering 20W output power into a 4Ω load. Features a wide operating supply voltage range of 8V to 18V, with a typical operating voltage of 15V. Offers a voltage gain of 36dB and a Power Supply Rejection Ratio (PSRR) of 73dB. Encased in a 24-pin HTSSOP package, this lead-free component operates from -40°C to 85°C.
PackageHTSSOP
Current8mA
Power20W
Quick Jump:
Technical Specifications
Texas Instruments TPA3001D1PWPG4 technical specifications.
General
Package/Case
HTSSOP
Gain
36dB
Lead Free
Lead Free
Load Impedance
4R
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
20W
Max Power Dissipation
4.16W
Max Supply Voltage
18V
Min Supply Voltage
8V
Number of Channels
1
Operating Supply Voltage
15V
Output Power
20W
Package Quantity
60
Packaging
Rail/Tube
Power Dissipation
4.16W
Power Supply Rejection Ratio (PSRR)
73dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPA3001D1
Supply Current
8mA
Supply Type
Single
Voltage Gain
36dB
Weight
0.00346oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPA3001D1PWPG4 Datasheet
Download the complete datasheet for Texas Instruments TPA3001D1PWPG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

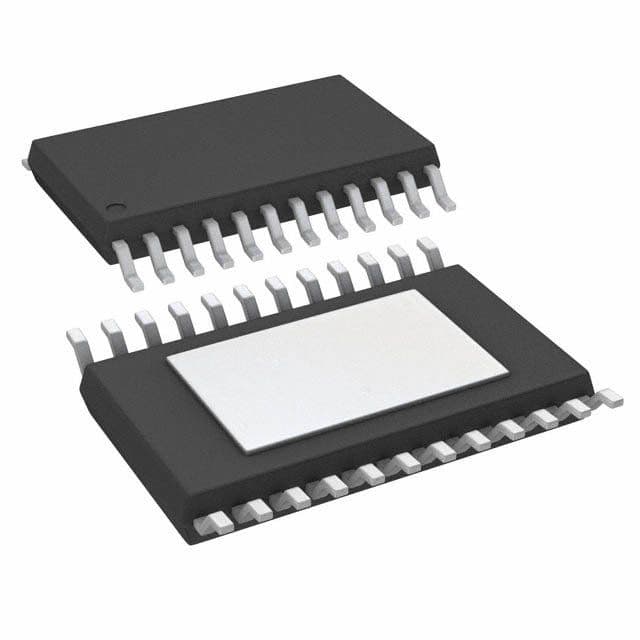

Product Images
