Texas Instruments
TPA3002D2PHP
9-W stereo, 8.5- to 14-V supply, analog input Class-D audio amplifier w/ volume control 48-HTQFP -40 to 85
PackageHTQFP
Current16mA
Power9W
Quick Jump:
Technical Specifications
Texas Instruments TPA3002D2PHP technical specifications.
General
Package/Case
HTQFP
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
9W
Max Power Dissipation
4.3W
Max Supply Voltage
14V
Min Supply Voltage
8.5V
Operating Supply Voltage
12V
Output Power
9W
Package Quantity
250
Packaging
Tray
Power Dissipation
4.3W
Power Supply Rejection Ratio (PSRR)
80dB
Radiation Hardening
No
RoHS Compliant
Yes
Series
TPA3002D2
Supply Current
16mA
Supply Type
Single
Weight
0.004744oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPA3002D2PHP Datasheet
Download the complete datasheet for Texas Instruments TPA3002D2PHP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

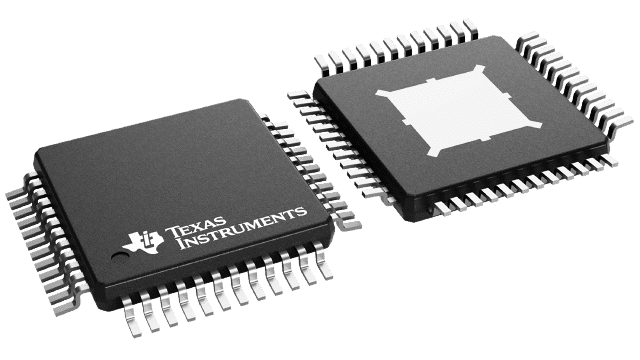

Product Images
