Texas Instruments
TPA3107D2PAPG4
15-W Stereo Class-D Audio Power Amplifier (TPA3107) 64-HTQFP -40 to 85
PackageHTQFP
Current22mA
Power15W
Quick Jump:
Technical Specifications
Texas Instruments TPA3107D2PAPG4 technical specifications.
General
Package/Case
HTQFP
Gain
36dB
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
15W
Max Power Dissipation
5.43W
Max Supply Voltage
26V
Min Supply Voltage
10V
Operating Supply Voltage
24V
Output Power
15W
Package Quantity
160
Packaging
Tray
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
22mA
Supply Type
Single
Voltage Gain
36dB
Weight
0.009108oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPA3107D2PAPG4 Datasheet
Download the complete datasheet for Texas Instruments TPA3107D2PAPG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

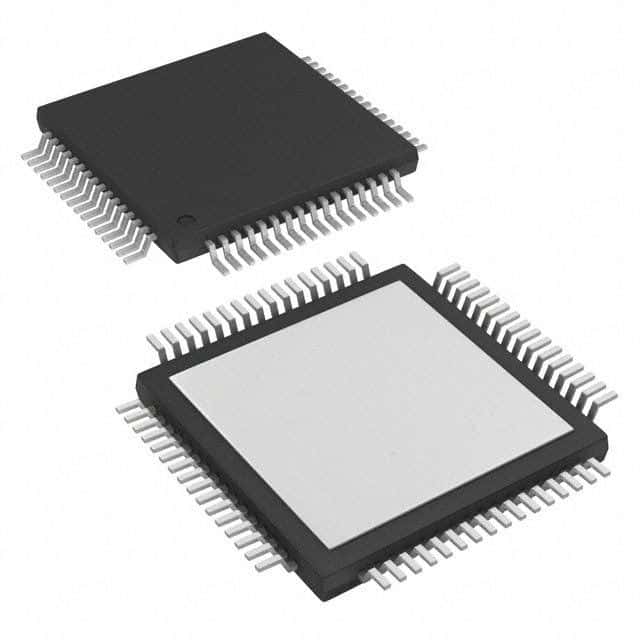

Product Images
