Texas Instruments
TPA3116D2DAD
Audio Amp Speaker 1-CH Mono/2-CH Stereo 50W Class-D 32-Pin HTSSOP EP Tube
PackageHTSSOP
MountingSurface Mount
Power50W
Quick Jump:
Technical Specifications
Texas Instruments TPA3116D2DAD technical specifications.
General
Package/Case
HTSSOP
Height
1.05mm
Input Type
ANALOG
Lead Free
Lead Free
Length
11.1mm
Load Impedance
4R
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
50W
Max Supply Voltage
26V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
2
Output Power
50W
Package Quantity
46
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SpeakerGuard™
Voltage Gain
36dB
Weight
0.006388oz
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPA3116D2DAD Datasheet
Download the complete datasheet for Texas Instruments TPA3116D2DAD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

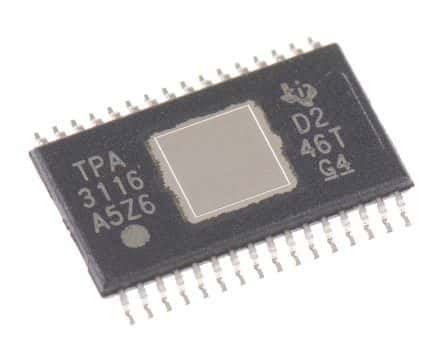

Product Images
