Texas Instruments
TPA6112A2DGQ
150-mW Stereo Headphone Audio Amplifier with Differential Input 10-HVSSOP -40 to 85
PackageHTSSOP EP
Current3mA
Power150mW
Quick Jump:
Technical Specifications
Texas Instruments TPA6112A2DGQ technical specifications.
General
| Bandwidth | 20kHz |
| Package/Case | HTSSOP EP |
| Input Offset Voltage (Vos) | 5mV |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 150mW |
| Max Power Dissipation | 2.14W |
| Max Supply Current | 3mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Number of Channels | 2 |
| Output Power | 150mW |
| Package Quantity | 80 |
| Packaging | Rail/Tube |
| Power Dissipation | 2.14W |
| Power Supply Rejection Ratio (PSRR) | 83dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Supply Type | Single |
| Weight | 0.000663oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPA6112A2DGQ Datasheet
Download the complete datasheet for Texas Instruments TPA6112A2DGQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

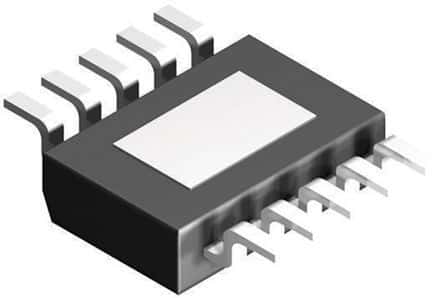

Product Images
