High fidelity stereo headphone amplifier, dual channel, 1.5W output power, 128dB signal-to-noise ratio, and 1300V/µs slew rate. Operates from a 10V to 30V dual supply voltage, with a maximum output current of 700mA and a load impedance of 16 Ohms. Features a 2mV input offset voltage and 75dB power supply rejection ratio. Packaged in a 14-VQFN surface mount case, this lead-free component operates between -40°C and 85°C.
PackageVQFN
MountingSurface Mount
Power1.5W
Quick Jump:
Technical Specifications
Texas Instruments TPA6120A2RGYT technical specifications.
General
Package/Case
VQFN
Dual Supply Voltage
15V
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Load Impedance
16R
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
80mW
Max Supply Voltage
30V
Min Supply Voltage
10V
Mount
Surface Mount
Number of Channels
2
Operating Supply Current
11.5mA
Output Current
700mA
Output Power
1.5W
Package Quantity
250
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
75dB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Signal to Noise Ratio (SNR)
128dB
Slew Rate
1300V/µs
Supply Type
Dual
Weight
0.001136oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPA6120A2RGYT Datasheet
Download the complete datasheet for Texas Instruments TPA6120A2RGYT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

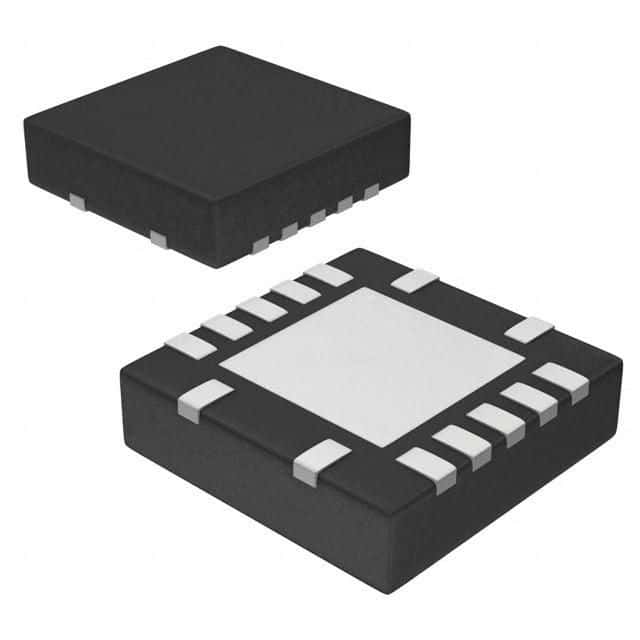

Product Images
