Texas Instruments
TPA6203A1GQVR
1.25-W Mono, Fully Differential, Class-AB Audio Amplifier 8-BGA MICROSTAR JUNIOR -40 to 85
PackageVFBGA
Current2mA
Power1.25W
Quick Jump:
Technical Specifications
Texas Instruments TPA6203A1GQVR technical specifications.
General
Package/Case
VFBGA
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
1.25W
Max Power Dissipation
885mW
Max Supply Current
2mA
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of Channels
1
Output Power
1.25W
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
885mW
Power Supply Rejection Ratio (PSRR)
-90dB
Quiescent Current
1.7mA
Radiation Hardening
No
RoHS Compliant
No
Supply Current
2mA
Supply Type
Single
Weight
0.000282oz
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments TPA6203A1GQVR Datasheet
Download the complete datasheet for Texas Instruments TPA6203A1GQVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

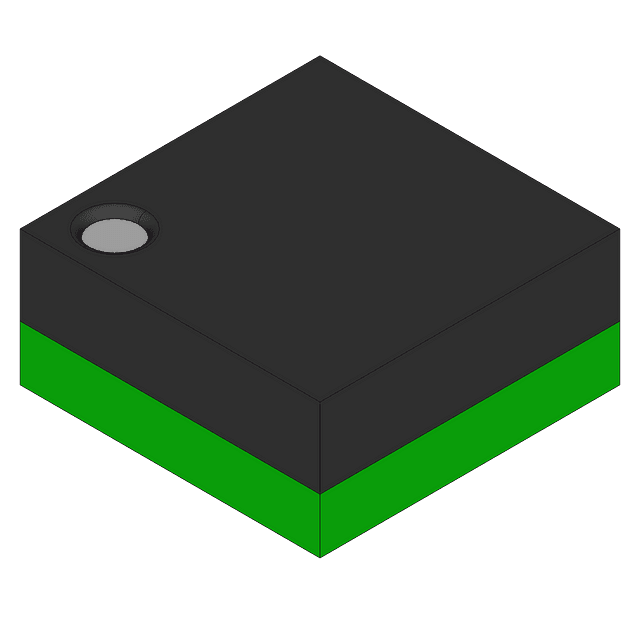

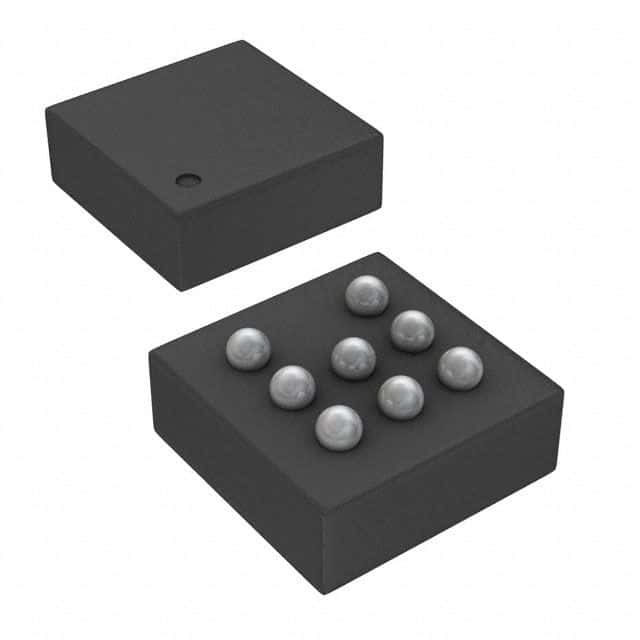

Product Images
