Texas Instruments
TPA6211A1TDGNRQ1
Automotive, 3.1-W, mono, analog input Class-AB audio amplifier 8-HVSSOP -40 to 105
PackageHVSSOP
Current4mA
MountingSurface Mount
Power3.1W
Quick Jump:
Technical Specifications
Texas Instruments TPA6211A1TDGNRQ1 technical specifications.
General
Package/Case
HVSSOP
Lead Free
Lead Free
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Output Power
3.1W
Max Power Dissipation
2.13W
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Channels
1
Output Power
3.1W
Package Quantity
2500
Packaging
Tape and Reel
Power Dissipation
2.13W
Power Supply Rejection Ratio (PSRR)
85dB
Quiescent Current
4mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Supply Current
4mA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPA6211A1TDGNRQ1 Datasheet
Download the complete datasheet for Texas Instruments TPA6211A1TDGNRQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

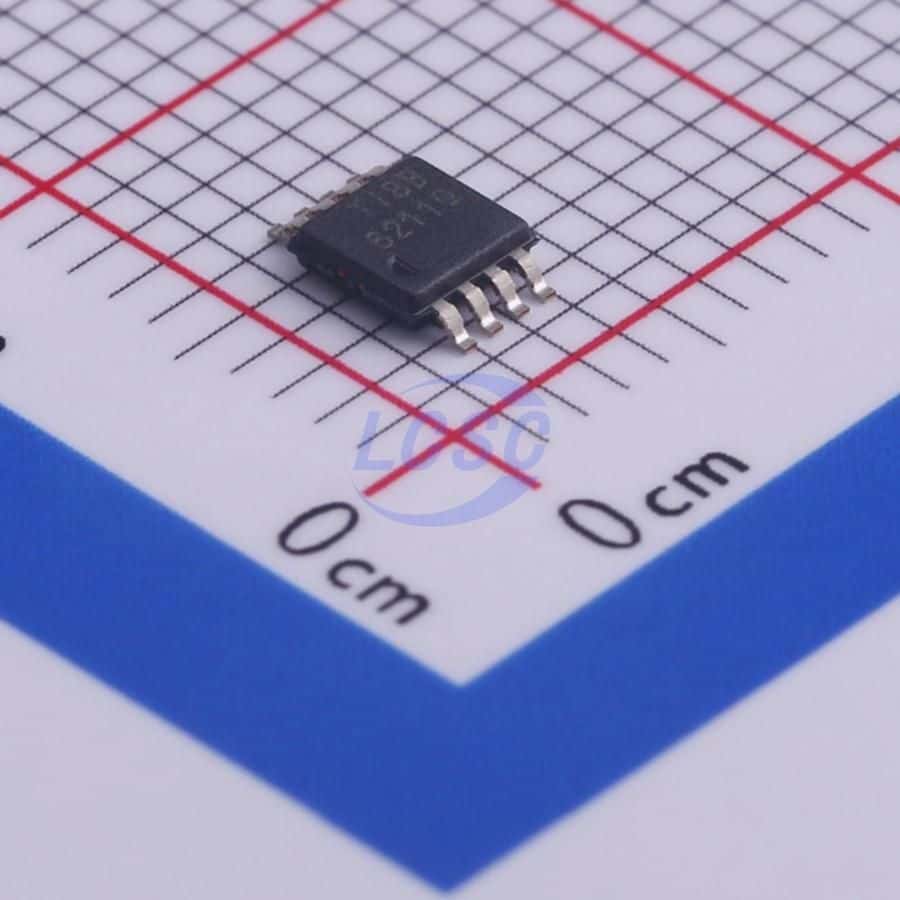

Product Images
