Texas Instruments
TPA751DGNR
700-mW Mono, Differential Input, Class-AB Audio Amplifier with Active Low Shutdown 8-HVSSOP -40 to 85
PackageHTSSOP EP
Current2.5mA
Power700mW
Quick Jump:
Technical Specifications
Texas Instruments TPA751DGNR technical specifications.
General
Package/Case
HTSSOP EP
Gain Bandwidth Product
1.4MHz
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
700mW
Max Power Dissipation
2.14W
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of Channels
1
Number of Circuits
1
Output Power
700mW
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
2.14W
Power Supply Rejection Ratio (PSRR)
85dB
Quiescent Current
1.45mA
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
2.5mA
Supply Type
Single
Unity Gain Bandwidth Product
1.4MHz
Weight
0.00067oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPA751DGNR Datasheet
Download the complete datasheet for Texas Instruments TPA751DGNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

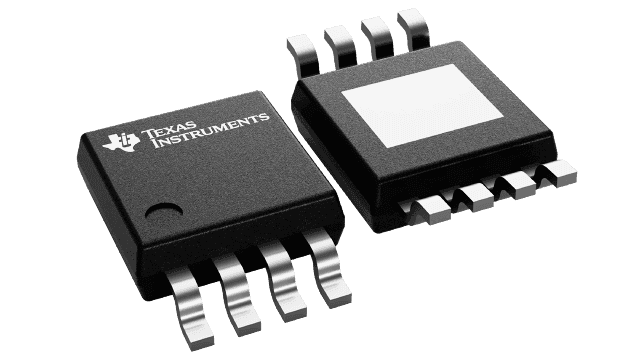

Product Images
