Texas Instruments
TPD2E001DRLRG4
Dual 1.5-pF, 5.5-V, ±8-kV ESD protection diode with 1-nA max leakage & VCC pin for USB 2.0 5-SOT-5X3 -40 to 85
PackageSOT
Capacitance1.5pF
Quick Jump:
Technical Specifications
Texas Instruments TPD2E001DRLRG4 technical specifications.
General
Capacitance
1.5pF
Package/Case
SOT
Clamping Voltage
105.5V
Depth
1.2mm
Direction
Unidirectional
Interface
LVDS, USB, Ethernet
Lead Free
Lead Free
Leakage Current
1nA
Length
1.6mm
Min Breakdown Voltage
11V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Number of Channels
2
Number of Unidirectional Channels
2
Operating Supply Voltage
5.5V
Package Quantity
4000
Packaging
Tape and Reel
Power Line Protection
Yes
Radiation Hardening
No
Reverse Standoff Voltage
5.5V
RoHS Compliant
Yes
Weight
9.9E-05oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPD2E001DRLRG4 Datasheet
Download the complete datasheet for Texas Instruments TPD2E001DRLRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

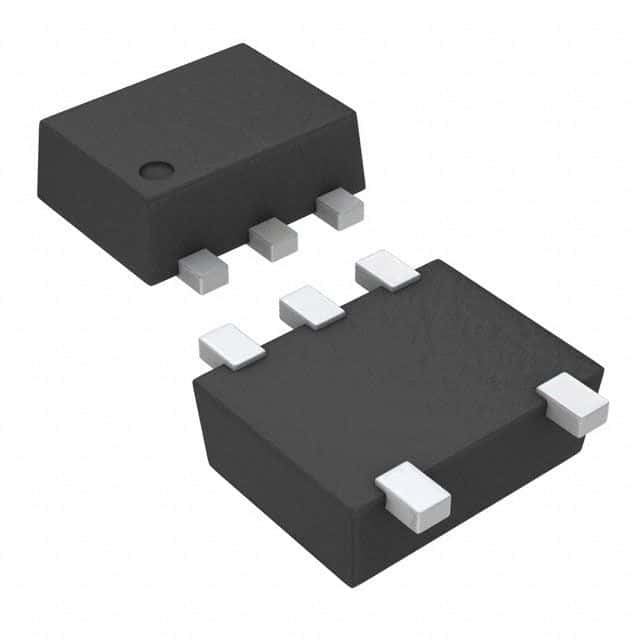

Product Images
