Dual unidirectional transient voltage suppressor (TVS) diode offering 1.5-pF capacitance and 5.5-V operating voltage. Features ±8-kV ESD protection, 1-nA maximum leakage current, and a minimum breakdown voltage of 11V. Designed for interfaces including USB 2.0, LVDS, and Ethernet, with a clamping voltage of 105.5V. Packaged in a compact 6-SON (1.45mm x 1.05mm x 0.55mm) for efficient board space utilization. Operates across a temperature range of -40°C to 85°C.
PackageSON
Capacitance1.5pF
Quick Jump:
Technical Specifications
Texas Instruments TPD2E001DRYR technical specifications.
General
Capacitance
1.5pF
Package/Case
SON
Clamping Voltage
105.5V
Depth
1mm
Direction
Unidirectional
ESD Protection
Yes
Height
0.55mm
Interface
LVDS, USB, Ethernet
Lead Free
Lead Free
Leakage Current
1nA
Length
1.45mm
Min Breakdown Voltage
11V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reverse Leakage Current
1nA
Number of Channels
2
Number of Unidirectional Channels
2
Operating Supply Voltage
5.5V
Package Quantity
5000
Packaging
Tape and Reel
Power Line Protection
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
5.5V
RoHS Compliant
Yes
Width
1.05mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPD2E001DRYR Datasheet
Download the complete datasheet for Texas Instruments TPD2E001DRYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

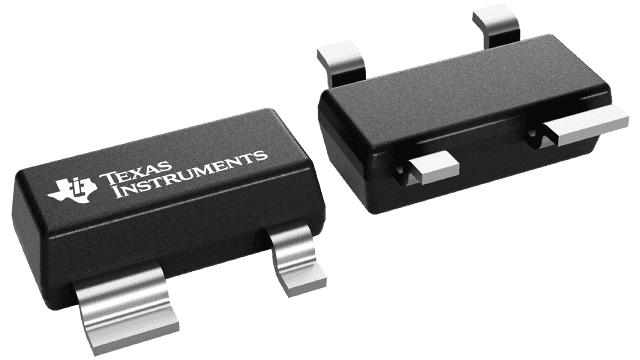

Product Images
