Texas Instruments
TPD2E007YFMRG4
2-channel ESD protection array for AC signal data interface 4-DSLGA -40 to 85
Capacitance15pF
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPD2E007YFMRG4 technical specifications.
General
| Capacitance | 15pF |
| Depth | 0.77mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Lead Free | Lead Free |
| Leakage Current | 50nA |
| Length | 0.77mm |
| Min Breakdown Voltage | 14V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 2 |
| Number of Channels | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 13V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPD2E007YFMRG4 Datasheet
Download the complete datasheet for Texas Instruments TPD2E007YFMRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

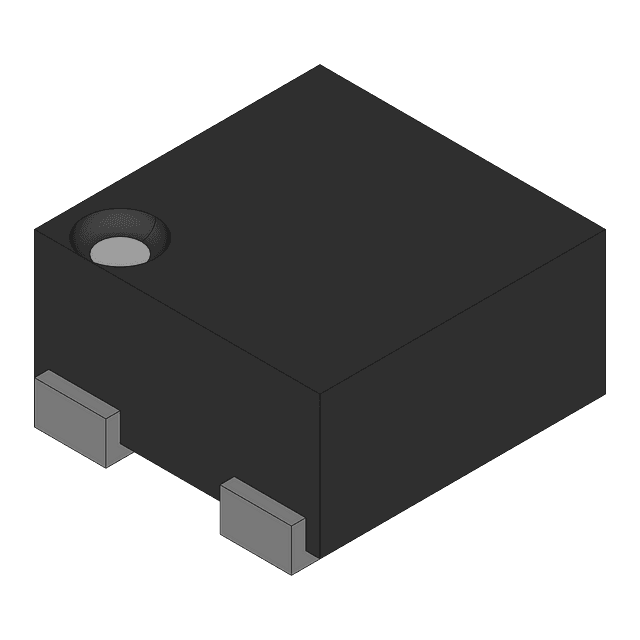

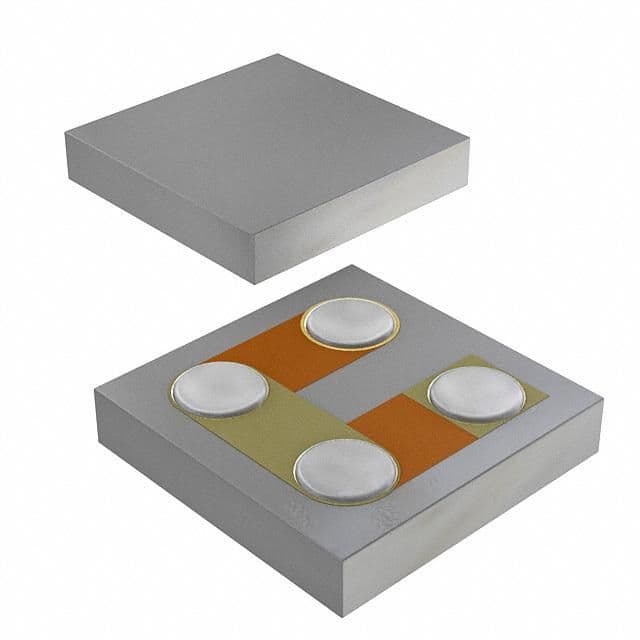

Product Images
