Texas Instruments
TPPM0110DWP
1.5-A, dual-channel low-dropout voltage regulator for 3.3V and 1.8V 20-SO PowerPAD 0 to 70
PackageHSOP
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments TPPM0110DWP technical specifications.
General
Accuracy
3%
Package/Case
HSOP
Input Bias Current
600uA
Lead Free
Lead Free
Max Input Voltage
5.3V
Min Input Voltage
4.7V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Max Power Dissipation
3.8W
Number of Outputs
2
Number of Regulators
2
Output Current
1.5A
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
25
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
1mA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPPM0110DWP Datasheet
Download the complete datasheet for Texas Instruments TPPM0110DWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

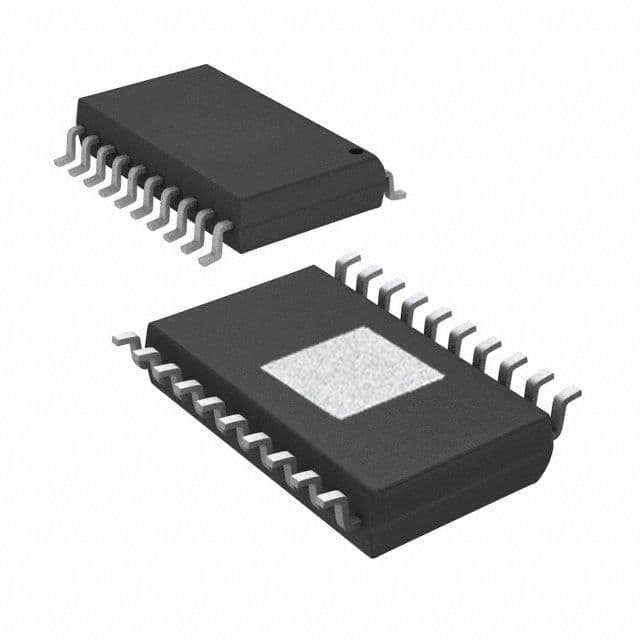

Product Images
