The TPS2062QDGNRQ1 is a dual high side switch from Texas Instruments. It operates over a temperature range of -40°C to 125°C and is compliant with AEC-Q100. The device has a maximum output current of 1A and a maximum supply voltage of 5.5V. It is packaged in a lead-free HVSSOP package and is available in quantities of 2500. The TPS2062QDGNRQ1 is suitable for use in automotive applications.
PackageHVSSOP
Current50uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS2062QDGNRQ1 technical specifications.
General
| Package/Case | HVSSOP |
| Fault Protection | Over Temperature |
| Interface | On/Off |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Number of Switches | 2 |
| Output Configuration | High Side |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Supply Current | 50uA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS2062QDGNRQ1 Datasheet
Download the complete datasheet for Texas Instruments TPS2062QDGNRQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

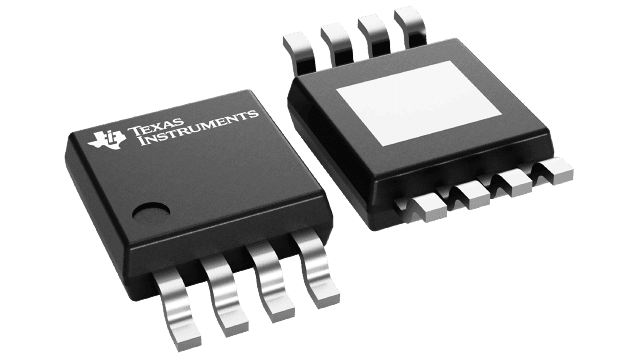

Product Images
