Texas Instruments
TPS2159IDGN
3.3V LDO + dual switch For USB hubs, active-high enables 8-HVSSOP -40 to 85
PackageHVSSOP
Quick Jump:
Technical Specifications
Texas Instruments TPS2159IDGN technical specifications.
General
Package/Case
HVSSOP
Lead Free
Lead Free
Min Current Limit
200mA
Max Input Voltage
5.5V
Min Input Voltage
2.9V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Max Supply Voltage
5.5V
Min Supply Voltage
2.9V
Number of Outputs
2
Number of Switches
2
Output Current
150mA
Output Voltage
3.3V
Package Quantity
80
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Weight
0.00067oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS2159IDGN Datasheet
Download the complete datasheet for Texas Instruments TPS2159IDGN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

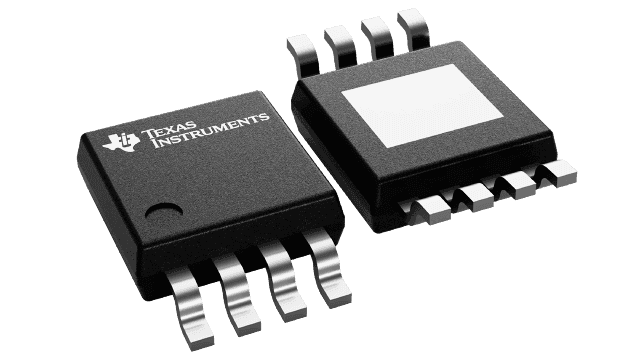

Product Images
