Texas Instruments
TPS2224ADB
Dual-Slot Cardbus Power-Interface Switches for Serial PCMCIA Controllers 24-SSOP -40 to 85
PackageSSOP
Quick Jump:
Technical Specifications
Texas Instruments TPS2224ADB technical specifications.
General
Package/Case
SSOP
Fault Protection
Over Temperature
Height
1.95mm
Interface
Serial
Lead Free
Lead Free
Length
8.2mm
Min Current Limit
1A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Nominal Supply Current
250mA
Number of Outputs
4
Number of Ports
2
Output Configuration
High Side
Output Voltage
6V
Package Quantity
60
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
TPS2224A
Weight
0.006081oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS2224ADB Datasheet
Download the complete datasheet for Texas Instruments TPS2224ADB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

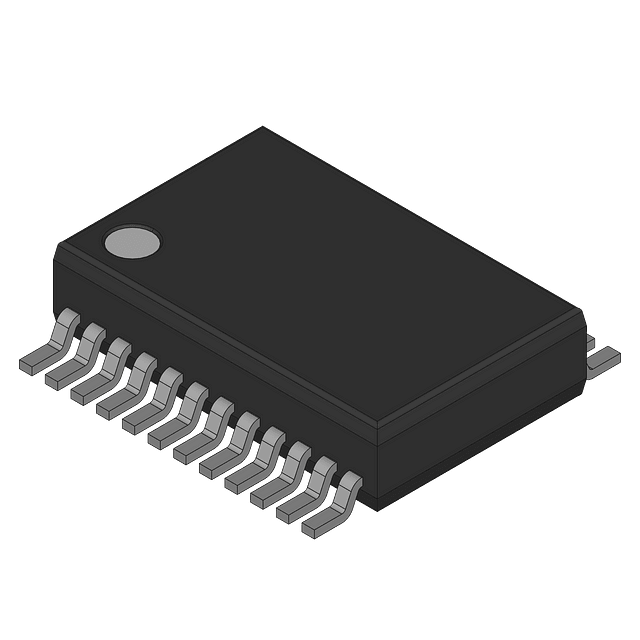

Product Images
