Single-channel, high-side power switch with a 4A maximum output current and a low 5.3mΩ on-state resistance. Features a 750mV to 3.6V operating supply voltage range and a simple On/Off interface. This surface-mount component is packaged in a compact 1.93mm x 0.934mm x 0.31mm DSBGA package, ideal for space-constrained applications. Operating temperature range spans -40°C to 85°C, with a quiescent current of 68µA and a maximum supply current of 350µA.
Voltage3.6V
Current4A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS22920YZPR technical specifications.
General
Current
4A
Height
0.31mm
Interface
On/Off
Lead Free
Lead Free
Length
1.93mm
Max Input Voltage
3.6V
Min Input Voltage
750mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Supply Current
350uA
Mount
Surface Mount
Number of Channels
1
Number of Outputs
1
On-State Resistance
5.3mR
Operating Supply Voltage
3.6V
Output Configuration
High Side
Output Current
4A
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
68uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Voltage
3.6V
Width
0.934mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS22920YZPR Datasheet
Download the complete datasheet for Texas Instruments TPS22920YZPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

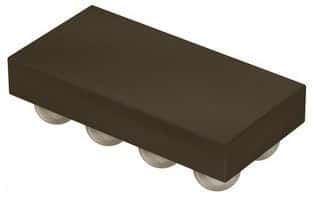

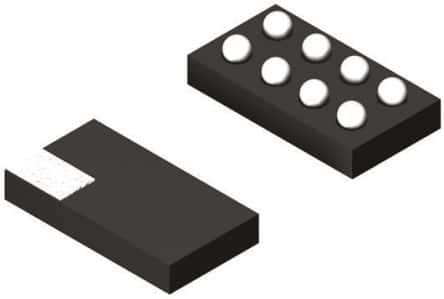

Product Images
