Power Over Ethernet (PoE) PD controller featuring a 67V operating supply voltage and 1A output current. This integrated circuit operates at 487kHz with a maximum duty cycle of 50% and a minimum current limit of 405mA. Housed in a 20-pin HTSSOP package, it offers a maximum power dissipation of 12.95W and operates across a temperature range of -40°C to 85°C. The device is RoHS compliant and designed for single-channel operation.
Frequency487kHz
PackageHTSSOP
Power12.95W
Quick Jump:
Technical Specifications
Texas Instruments TPS23750PWP technical specifications.
General
Package/Case
HTSSOP
Frequency
487kHz
Height
1.15mm
Lead Free
Lead Free
Length
6.5mm
Min Current Limit
405mA
Max Duty Cycle
50%
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
12.95W
Number of Channels
1
Operating Supply Current
2mA
Operating Supply Voltage
67V
Output Current
1A
Output Power
12.95W
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.002885oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS23750PWP Datasheet
Download the complete datasheet for Texas Instruments TPS23750PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

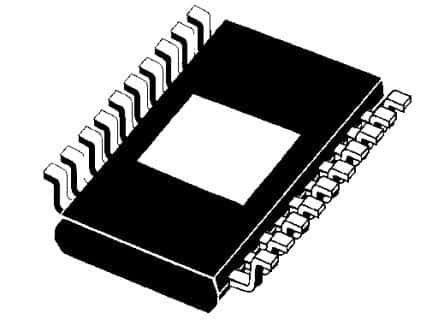

Product Images
