Power Over Ethernet controller IC, operating from 0V to 57V, featuring a 1.4A maximum output current and 13W power dissipation. This 20-pin TSSOP package component offers a 400mA minimum current limit and operates at a 278kHz frequency. Designed for surface-mount termination, it boasts a wide operating temperature range of -40°C to 125°C and is RoHS compliant.
Frequency278kHz
PackageTSSOP
Power13W
Quick Jump:
Technical Specifications
Texas Instruments TPS23757PW technical specifications.
General
Package/Case
TSSOP
Frequency
278kHz
Height
1.15mm
Lead Free
Lead Free
Length
6.5mm
Min Current Limit
400mA
Max Input Voltage
57V
Min Input Voltage
0V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.4A
Max Power Dissipation
13W
Max Supply Voltage
57V
Min Supply Voltage
0V
Number of Channels
1
Number of Outputs
1
Operating Supply Current
920uA
Output Current
1.4A
Package Quantity
70
Packaging
Rail/Tube
Power Dissipation
13W
Power Supply
57V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS23757PW Datasheet
Download the complete datasheet for Texas Instruments TPS23757PW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

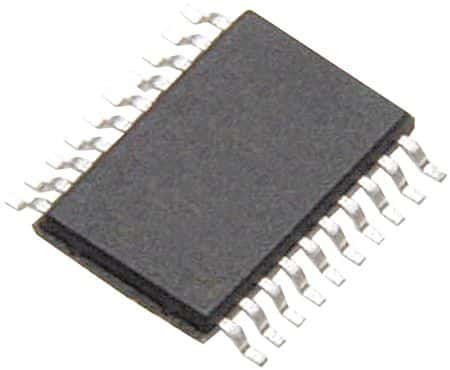

Product Images
