Single-channel processor supervisor IC with adjustable reset threshold. Features active-low, open-drain reset output. Operates from 1.65V to 6.5V supply voltage with a typical quiescent current of 2.4µA. Packaged in a 6-pin SOT-23, supplied on tape and reel. RoHS compliant with a maximum operating temperature of 125°C.
PackageSOT-23
Current2.7uA
Quick Jump:
Technical Specifications
Texas Instruments TPS3808G01DBVR technical specifications.
General
Package/Case
SOT-23
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6.5V
Min Supply Voltage
1.65V
Number of Elements
1
Number of Voltages Monitored
1
Operating Supply Current
2.4uA
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
2.4uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
RoHS Compliant
Yes
Supply Current
2.7uA
Threshold Voltage
405mV
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS3808G01DBVR Datasheet
Download the complete datasheet for Texas Instruments TPS3808G01DBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

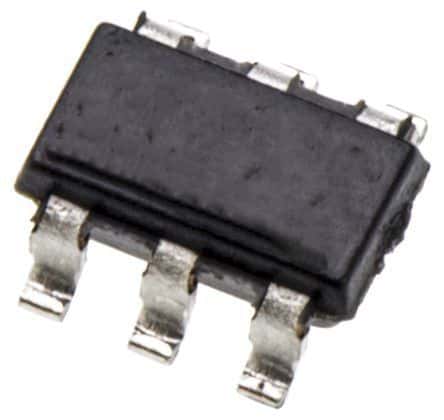

Product Images
