Texas Instruments
TPS3808G25DRVT
Low-quiescent current supervisor with programmable delay & manual reset 6-WSON -40 to 125
Quick Jump:
Technical Specifications
Texas Instruments TPS3808G25DRVT technical specifications.
General
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
2.341V
Min Reset Threshold Voltage
2.3183V
Max Supply Voltage
6.5V
Min Supply Voltage
1.65V
Number of Elements
1
Number of Voltages Monitored
1
Operating Supply Current
2.7uA
Operating Supply Voltage
2.5V
Overvoltage Threshold
2.341V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
2.4uA
Radiation Hardening
No
Reset
Active Low
RoHS Compliant
Yes
Threshold Voltage
2.33V
Undervoltage Threshold
2.3183V
Watchdog Timer
No
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS3808G25DRVT Datasheet
Download the complete datasheet for Texas Instruments TPS3808G25DRVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

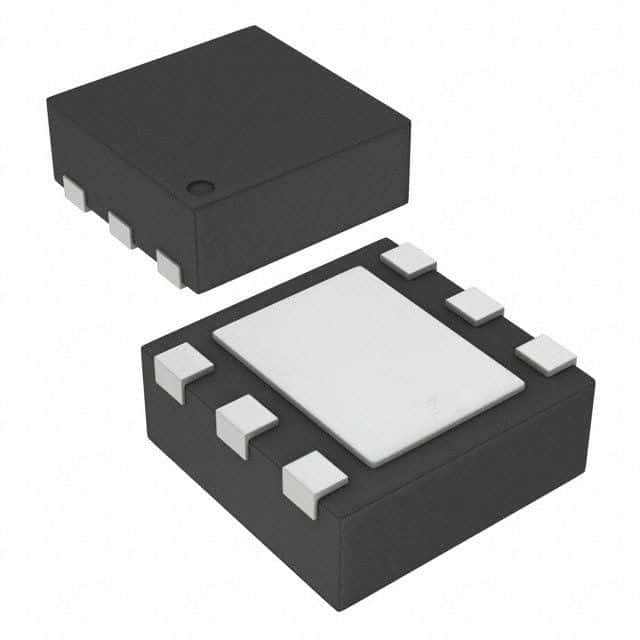

Product Images
