Texas Instruments
TPS3818G25DRVR
Low Quiescent Current, Accurate Programmable-Delay Supervisory Circuit 6-SON -40 to 125
Quick Jump:
Technical Specifications
Texas Instruments TPS3818G25DRVR technical specifications.
General
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6.5V |
| Min Supply Voltage | 1.7V |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 2.7uA |
| Operating Supply Voltage | 2.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 2.4uA |
| Radiation Hardening | No |
| Reset | Active Low |
| Reset Timeout | 180ms |
| RoHS Compliant | Yes |
| Series | TPS3818G25 |
| Threshold Voltage | 2.33V |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS3818G25DRVR Datasheet
Download the complete datasheet for Texas Instruments TPS3818G25DRVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

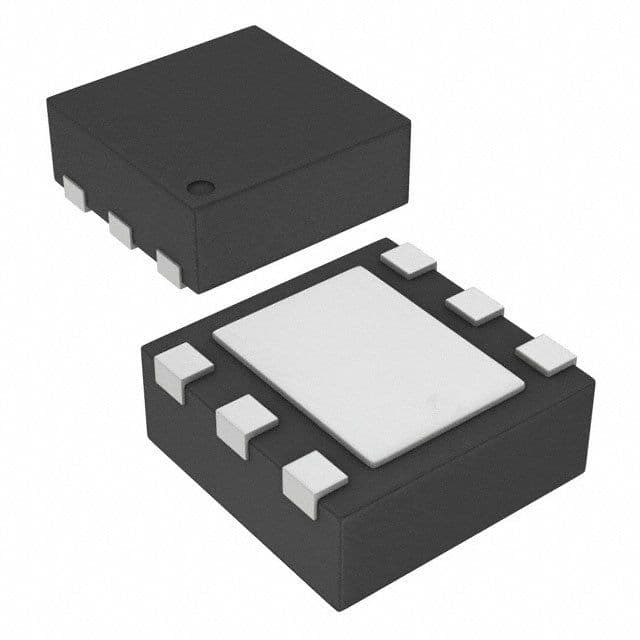

Product Images
