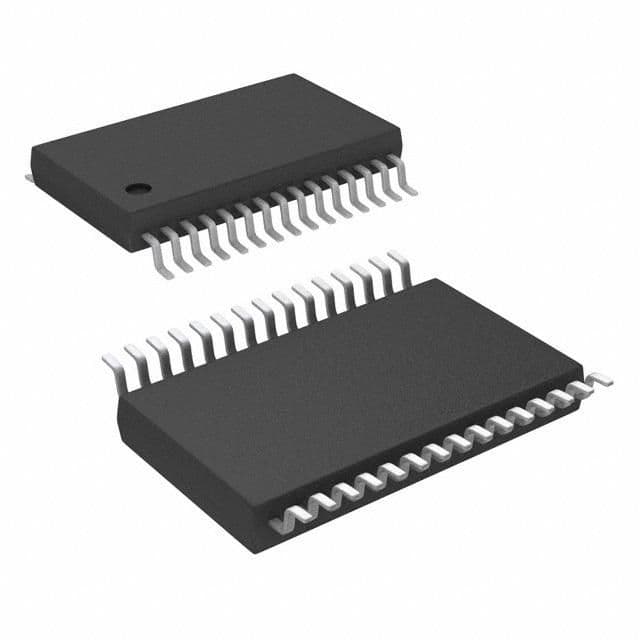

Dual output, two-phase synchronous buck controller designed for efficient power management. Features a wide input voltage range from 4.5V to 28V, supporting a maximum output voltage of 26V and an output current up to 20A per channel. Operates with a maximum switching frequency of 500kHz and a duty cycle up to 83%. Packaged in a compact 30-TSSOP with dimensions of 7.8mm length, 4.4mm width, and 1.15mm height. This RoHS compliant component offers a broad operating temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TPS5120DBTG4 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TSSOP |
| Duty Cycle | 83% |
| Height | 1.15mm |
| Lead Free | Lead Free |
| Length | 7.8mm |
| Max Frequency | 500kHz |
| Max Input Voltage | 28V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20A |
| Max Output Voltage | 26V |
| Min Output Voltage | 900mV |
| Max Supply Voltage | 28V |
| Min Supply Voltage | 4.5V |
| Number of Outputs | 2 |
| Output Current | 20A |
| Output Voltage | 24V |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Power Dissipation | 874mW |
| Quiescent Current | 1.1mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Weight | 0.003439oz |
| Width | 4.4mm |
| RoHS | Compliant |
