Texas Instruments
TPS51315RGFR
3V to 14V Input, 10A Synchronous Step Down DCAP Mode Converter with Eco-Mode 40-VQFN -40 to 125
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS51315RGFR technical specifications.
General
Package/Case
VQFN
Height
0.88mm
Lead Free
Lead Free
Length
7mm
Max Input Voltage
14V
Min Input Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
5.5V
Min Output Voltage
750mV
Mount
Surface Mount
Number of Outputs
1
Output Configuration
Positive
Output Current
10A
Output Type
Adjustable
Output Voltage
5.5V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
400uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
D-CAP™
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS51315RGFR Datasheet
Download the complete datasheet for Texas Instruments TPS51315RGFR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

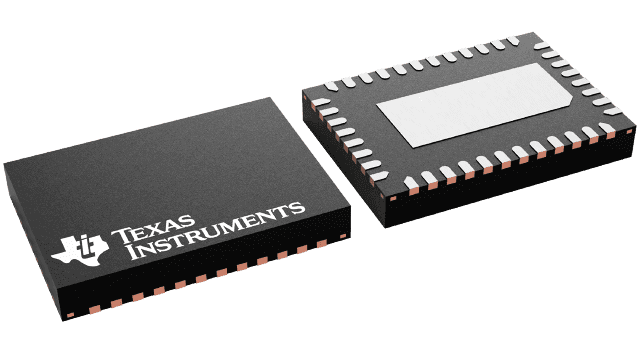

Product Images
