Texas Instruments
TPS53127PWR
4.5 V to 24 V input, 700 kHz, synchronous DCAP2 mode dual step-down controller 24-TSSOP -40 to 85
Frequency700kHz
PackageTSSOP
Quick Jump:
Technical Specifications
Texas Instruments TPS53127PWR technical specifications.
General
Package/Case
TSSOP
Duty Cycle
89%
Lead Free
Lead Free
Max Frequency
700kHz
Max Input Voltage
24V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
15A
Max Output Voltage
5.5V
Min Output Voltage
760mV
Number of Outputs
2
Operating Supply Voltage
24V
Output Voltage
5.5V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
450uA
RoHS Compliant
Yes
Series
D-CAP2™
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS53127PWR Datasheet
Download the complete datasheet for Texas Instruments TPS53127PWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

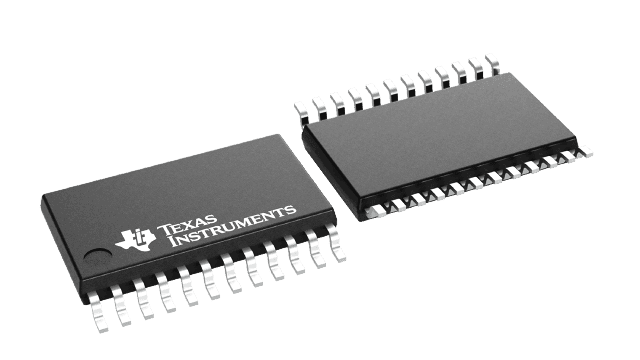

Product Images
