Texas Instruments
TPS54020RUWR
4.5V to 17V Input, 10A Synchronous Step-Down SWIFT™ Converter with Out-of-Phase Synchronizatio 15-VQFN-HR -40 to 150
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS54020RUWR technical specifications.
General
Package/Case
VQFN
Lead Free
Contains Lead
Max Input Voltage
17V
Min Input Voltage
4.5V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
10A
Max Output Voltage
5V
Min Output Voltage
600mV
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
17V
Output Configuration
Positive
Output Current
10A
Output Type
Adjustable
Output Voltage
15V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
600uA
RoHS Compliant
Yes
Series
SWIFT™, Eco-Mode™
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54020RUWR Datasheet
Download the complete datasheet for Texas Instruments TPS54020RUWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

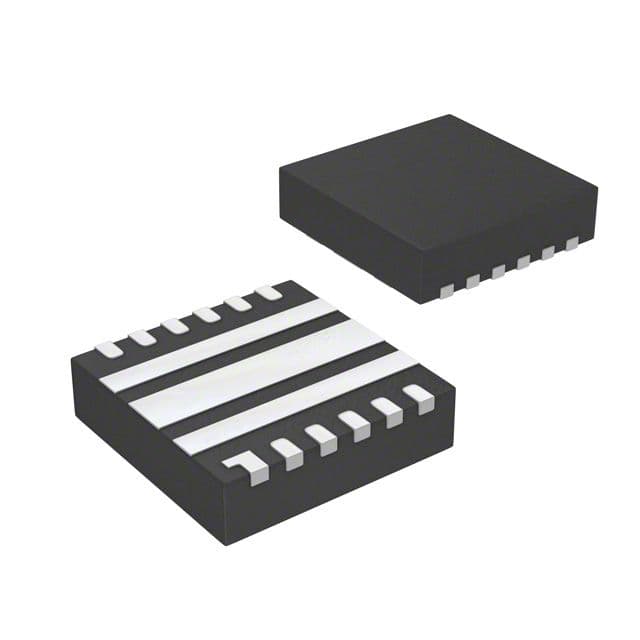

Product Images
