Texas Instruments
TPS54122RHLR
3A QuietSupply™ Regulator with Integrated DC-DC Converter and Low-Noise LDO 24-VQFN -40 to 150
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS54122RHLR technical specifications.
General
Package/Case
VQFN
Current - Output 1
3A
Current - Output 2
3A
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.95V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
3A
Mount
Surface Mount
Number of Outputs
2
Operating Supply Voltage
5.5V
Output Current
3A
Output Voltage
3.6V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
360uA
Radiation Hardening
No
RoHS Compliant
Yes
Voltage - Output 1
3.6V
Voltage - Output 2
3.6V
Weight
0.001926oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54122RHLR Datasheet
Download the complete datasheet for Texas Instruments TPS54122RHLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

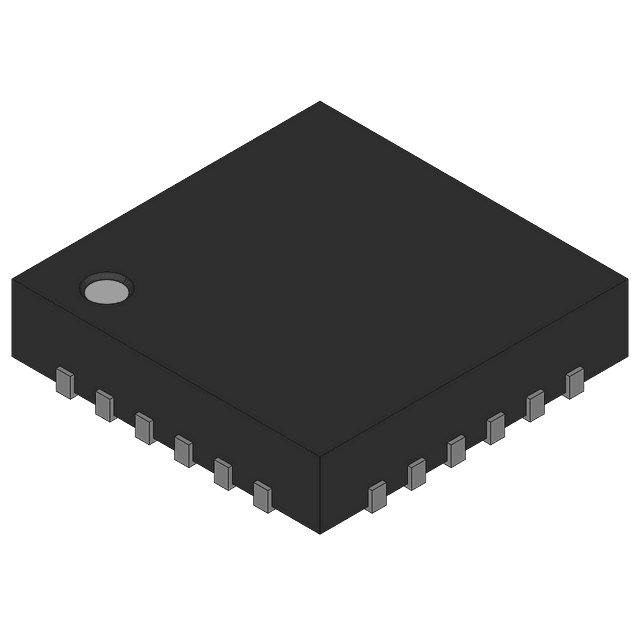

Product Images
