Synchronous step-down converter with 3V to 6V input voltage range and up to 3A output current. Features adjustable output voltage from 900mV to 3.3V, supporting a maximum output power of 3.07W. Operates within a wide temperature range of -40°C to 125°C and is housed in a compact 20-pin HTSSOP package. This RoHS compliant component offers a 6.2mA quiescent current and a 6.2A current rating.
PackageHTSSOP
Current Rating6.2A
Power3.07W
Quick Jump:
Technical Specifications
Texas Instruments TPS54310PWP technical specifications.
General
Package/Case
HTSSOP
Current Rating
6.2A
Height
1.15mm
Lead Free
Lead Free
Length
6.5mm
Max Input Voltage
6V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
3.3V
Min Output Voltage
900mV
Number of Outputs
1
Output Configuration
Positive
Output Current
3A
Output Power
3.07W
Output Type
Adjustable
Output Voltage
3.3V
Packaging
Rail/Tube
Quiescent Current
6.2mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SWIFT™
Synchronous Rectifier
Yes
Weight
0.002885oz
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54310PWP Datasheet
Download the complete datasheet for Texas Instruments TPS54310PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

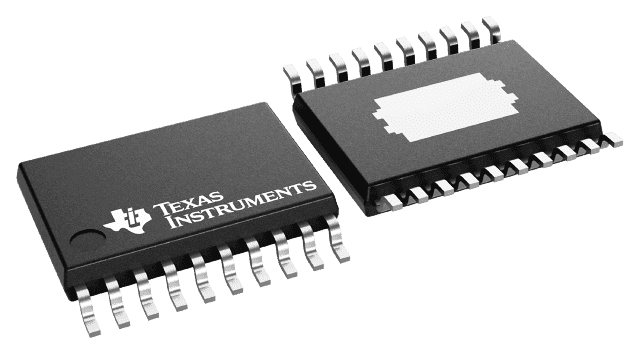

Product Images
