Texas Instruments
TPS54319RTER
2.95 V to 6 V input, 3 A, 2 MHz SWIFT™ synchronous step-down converter in a 3 mm x 3 mm QFN package 16-WQFN -40 to 150
Current360uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS54319RTER technical specifications.
General
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.95V
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
4.5V
Min Output Voltage
827mV
Min Supply Voltage
2.95V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
6V
Output Configuration
Positive
Output Current
3A
Output Type
Adjustable
Output Voltage
4.5V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
360uA
RoHS Compliant
Yes
Series
SWIFT™
Supply Current
360uA
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54319RTER Datasheet
Download the complete datasheet for Texas Instruments TPS54319RTER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

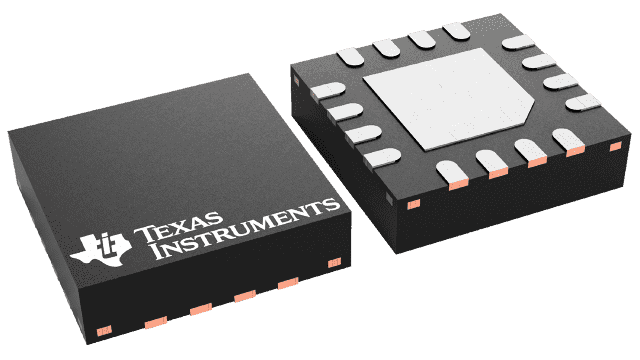

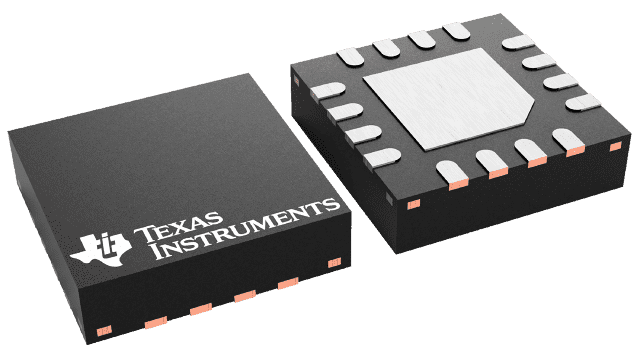

Product Images
