Texas Instruments
TPS54341DPRR
4.5 to 42V Input 3.5A Step-Down DC-DC Converter With Soft-Start and Eco-mode™ 10-WSON -40 to 85
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS54341DPRR technical specifications.
General
Lead Free
Lead Free
Max Input Voltage
42V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
3.5A
Max Output Voltage
41V
Min Output Voltage
800mV
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
42V
Output Configuration
Positive
Output Current
3.5A
Output Type
Adjustable
Output Voltage
41V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
152uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
Eco-Mode™
Synchronous Rectifier
No
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54341DPRR Datasheet
Download the complete datasheet for Texas Instruments TPS54341DPRR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

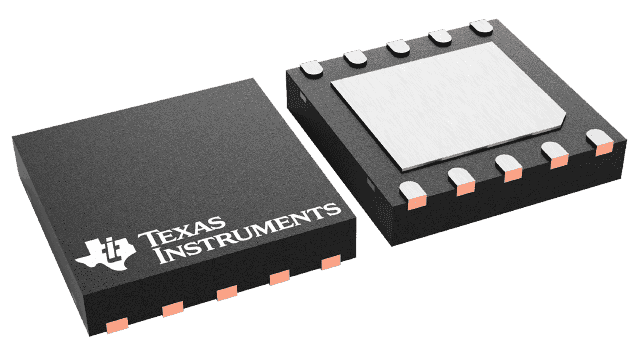

Product Images
