Texas Instruments
TPS54355PWP
4.5V to 20V Input, 2.5V 3A Synchronous Step-Down SWIFT™ Converter w/ Low-Side Gate Driver 16-HTSSOP -40 to 85
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS54355PWP technical specifications.
General
Package/Case
HTSSOP
Lead Free
Lead Free
Max Input Voltage
20V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
3A
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
20V
Output Current
3A
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
90
Packaging
Rail/Tube
Quiescent Current
9mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
SWIFT™
Synchronous Rectifier
Yes
Weight
0.002212oz
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54355PWP Datasheet
Download the complete datasheet for Texas Instruments TPS54355PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

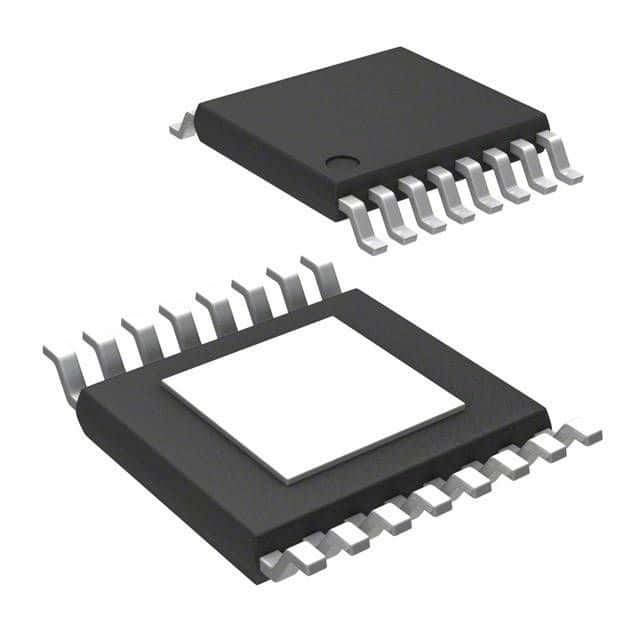

Product Images
