Texas Instruments
TPS54383PWPRG4
4.5V to 28V Input, Dual 3A Outputs, 300kHz Step-Down Converter with Internal Compensation 14-HTSSOP -40 to 125
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS54383PWPRG4 technical specifications.
General
Package/Case
HTSSOP
Lead Free
Lead Free
Max Input Voltage
28V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
25.2V
Min Output Voltage
800mV
Mount
Surface Mount
Number of Outputs
2
Operating Supply Voltage
28V
Output Configuration
Positive
Output Current
3A
Output Type
Adjustable
Output Voltage
25.2V
Package Quantity
2000
Packaging
Tape and Reel
Quiescent Current
1.8mA
RoHS Compliant
Yes
Synchronous Rectifier
No
Weight
0.002046oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS54383PWPRG4 Datasheet
Download the complete datasheet for Texas Instruments TPS54383PWPRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

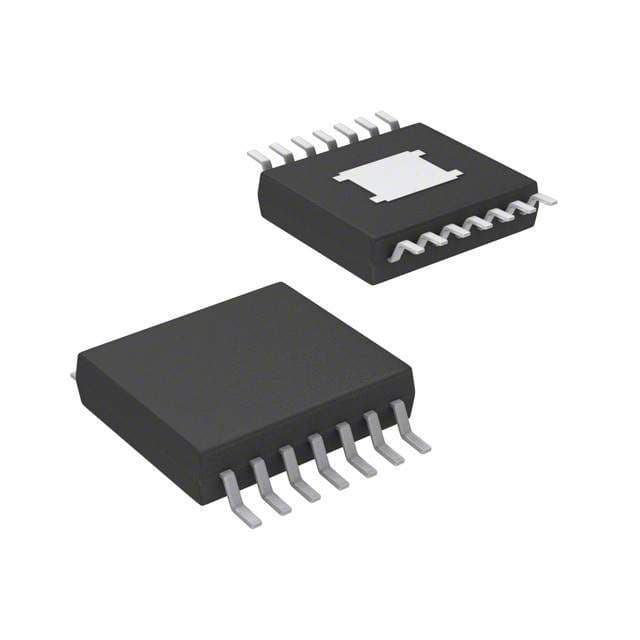

Product Images
