Texas Instruments
TPS54974PWPR
Split Rail (3.3V, 2.5V) Input, 9A Synchronous Step-Down SWIFT™ Converter 28-HTSSOP -40 to 85
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS54974PWPR technical specifications.
General
| Package/Case | HTSSOP |
| Lead Free | Contains Lead |
| Max Input Voltage | 4V |
| Min Input Voltage | 2.2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 9A |
| Output Type | Adjustable |
| Output Voltage | 2V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Quiescent Current | 11mA |
| RoHS Compliant | Yes |
| Series | SWIFT™ |
| Synchronous Rectifier | Yes |
| Weight | 0.00418oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS54974PWPR Datasheet
Download the complete datasheet for Texas Instruments TPS54974PWPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

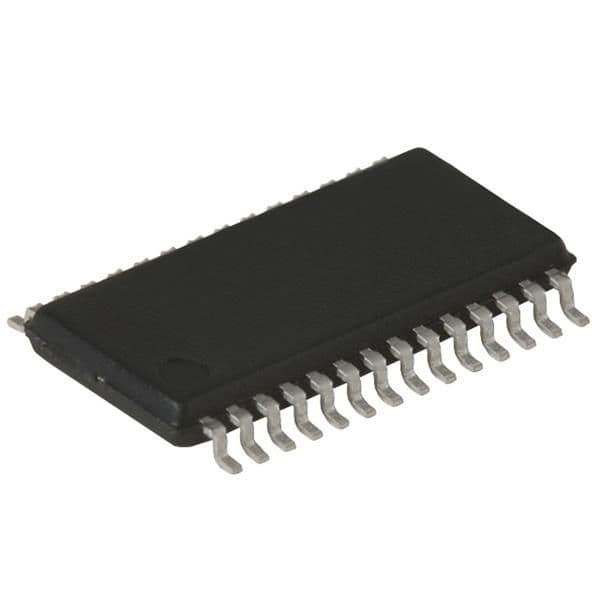

Product Images
