Synchronous step-down DC/DC converter with a 4.5V to 14V input voltage range and a maximum output current of 15A. Features adjustable output voltage from 600mV to 13.02V, achieving up to 90% efficiency. Operates across a wide temperature range of -40°C to 125°C with a quiescent current of 2.5mA. This surface mount component, packaged on tape and reel, offers a single positive output and is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS56121DQPR technical specifications.
General
Efficiency
90%
Lead Free
Contains Lead
Max Input Voltage
14V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
15A
Max Output Voltage
13.02V
Min Output Voltage
600mV
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
14V
Output Configuration
Positive
Output Current
15A
Output Type
Adjustable
Output Voltage
12V
Package Quantity
2500
Packaging
Tape and Reel
Quiescent Current
2.5mA
RoHS Compliant
Yes
Series
SWIFT™
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS56121DQPR Datasheet
Download the complete datasheet for Texas Instruments TPS56121DQPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

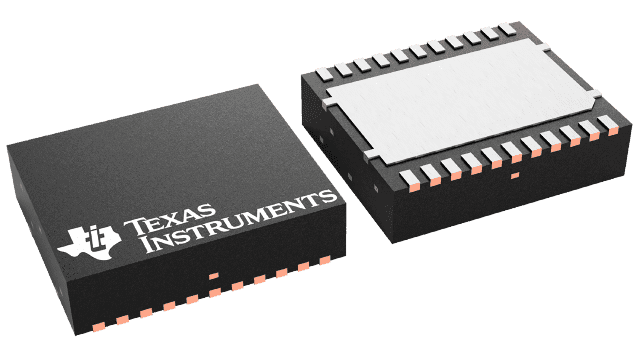

Product Images
