Synchronous step-down converter with a 4.5V to 14V input range and 25A maximum output current. Features adjustable output voltage from 600mV to 12V, achieving up to 90% efficiency. This surface mount device operates from -40°C to 125°C and is packaged in a 22-LSON-CLIP (QFN EP) with dimensions of 6.1mm x 5.1mm x 1.45mm. Includes a synchronous rectifier and a quiescent current of 2.5mA.
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS56221DQPT technical specifications.
General
Package/Case
QFN EP
Efficiency
90%
Height
1.45mm
Lead Free
Contains Lead
Length
6.1mm
Max Input Voltage
14V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
25A
Max Output Voltage
12V
Min Output Voltage
600mV
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
14V
Output Current
25A
Output Type
Adjustable
Output Voltage
12V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
2.5mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SWIFT™
Synchronous Rectifier
Yes
Width
5.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS56221DQPT Datasheet
Download the complete datasheet for Texas Instruments TPS56221DQPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

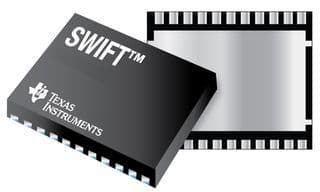

Product Images
