Synchronous step-down regulator, a power management IC, offers a 5A maximum output current with an adjustable output voltage ranging from 600mV to 1.87V. This surface mount component operates with an input voltage range of 4.5V to 17V and features a 920µA quiescent current. Designed for a wide temperature range of -40°C to 85°C, it is housed in a 20-pin HTSSOP package and is RoHS compliant.
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS56520PWPR technical specifications.
General
Package/Case
HTSSOP
Lead Free
Lead Free
Max Input Voltage
17V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Output Voltage
1.87V
Min Output Voltage
600mV
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
17V
Output Configuration
Positive
Output Current
5A
Output Type
Adjustable (Programmable)
Output Voltage
1.87V
Package Quantity
2000
Packaging
Tape and Reel
Quiescent Current
920uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
SWIFT™, D-CAP2™, Eco-Mode™
Synchronous Rectifier
Yes
Weight
0.028254oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS56520PWPR Datasheet
Download the complete datasheet for Texas Instruments TPS56520PWPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

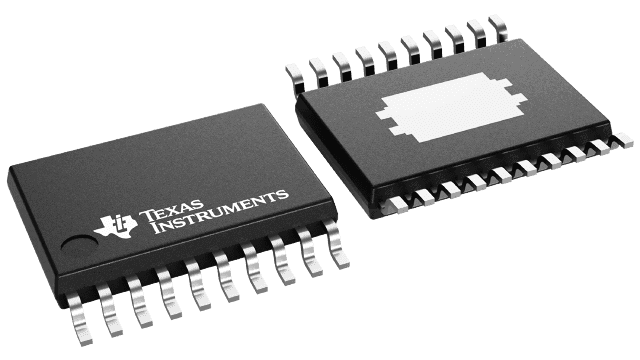

Product Images
