Texas Instruments
TPS56921PWPR
4.5-V to 17-V Input, 9-A synchronous step-down converter with VID control 20-HTSSOP -40 to 125
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS56921PWPR technical specifications.
General
Package/Case
HTSSOP
Lead Free
Lead Free
Max Input Voltage
17V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
1.48V
Min Output Voltage
720mV
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Outputs
1
Output Configuration
Positive
Output Current
9A
Output Type
Adjustable (Programmable)
Output Voltage
1.48V
Package Quantity
2000
Packaging
Tape and Reel
Quiescent Current
770uA
RoHS Compliant
Yes
Series
SWIFT™
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS56921PWPR Datasheet
Download the complete datasheet for Texas Instruments TPS56921PWPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

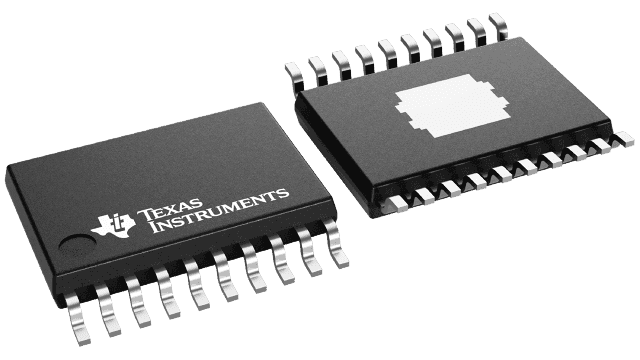

Product Images
