Synchronous step-down regulator, 12A output current, 17V maximum input voltage, and 4.5V minimum input voltage. Features adjustable output voltage from 600mV to 1.87V, a single positive output, and a quiescent current of 920µA. Operates across a temperature range of -40°C to 85°C. Packaged in a 24-pin HTSSOP for surface mounting, supplied on tape and reel.
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS56C20PWPR technical specifications.
General
Package/Case
HTSSOP
Lead Free
Lead Free
Max Input Voltage
17V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
12A
Max Output Voltage
1.87V
Min Output Voltage
600mV
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
17V
Output Configuration
Positive
Output Current
12A
Output Type
Adjustable (Programmable), Adjustable
Output Voltage
1.87V
Package Quantity
2000
Packaging
Tape and Reel
Quiescent Current
920uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
SWIFT™, D-CAP2™, Eco-Mode™
Synchronous Rectifier
Yes
Weight
0.038731oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS56C20PWPR Datasheet
Download the complete datasheet for Texas Instruments TPS56C20PWPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

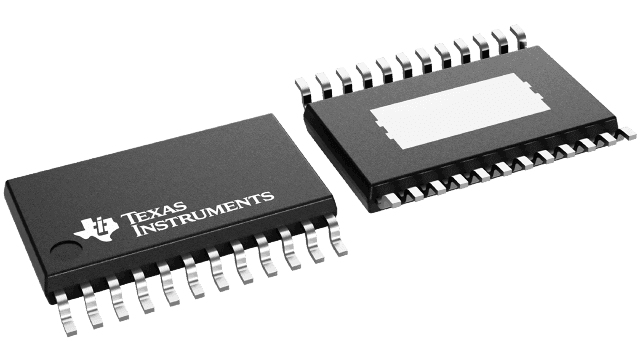

Product Images
