Texas Instruments
TPS60230RGTT
5-channel, current-regulated 125-mA charge pump for white LED backlight in 3x3 QFN 16-VQFN -40 to 85
Frequency1.25MHz
PackageVQFN EP
Quick Jump:
Technical Specifications
Texas Instruments TPS60230RGTT technical specifications.
General
Package/Case
VQFN EP
Frequency
1.25MHz
Lead Free
Lead Free
Max Input Voltage
6.5V
Min Input Voltage
2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
125mA
Max Supply Voltage
6.5V
Min Supply Voltage
2.7V
Number of Channels
5
Number of Outputs
5
Output Current
125mA
Output Voltage
5.5V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
200uA
Radiation Hardening
No
RoHS Compliant
Yes
Topology
Boost
Touchscreen
Capacitive
Weight
0.00085oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS60230RGTT Datasheet
Download the complete datasheet for Texas Instruments TPS60230RGTT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

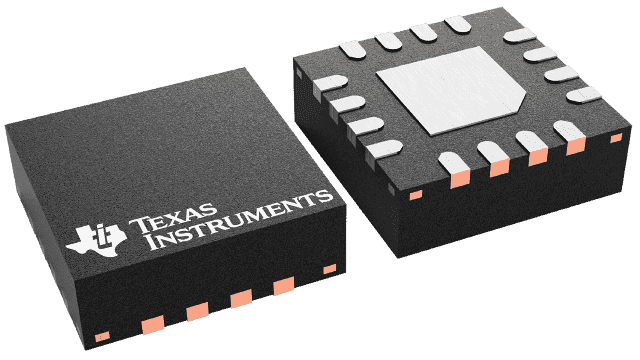

Product Images
