Boost converter IC featuring a 28V maximum output voltage and 400mA output current. Operates with input voltages from 1.8V to 6V, delivering up to 28V output at 400mA. Achieves 86% efficiency at a 1MHz switching frequency, with a low 28µA quiescent current. Supports PWM dimming and is housed in a compact SOT-23 package, suitable for LCD and white LED applications. Rated for operation across a -40°C to 85°C temperature range.
Frequency1MHz
Power1.3W
Quick Jump:
Technical Specifications
Texas Instruments TPS61040DRVTG4 technical specifications.
General
Dimming
PWM
Efficiency
86%
Frequency
1MHz
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
1.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
90mA
Max Output Voltage
28V
Min Output Voltage
1.8V
Max Supply Current
50uA
Max Supply Voltage
6V
Number of Outputs
1
Operating Frequency
1 MHz
Output Current
400mA
Output Current per Channel
350mA
Output Voltage
28V
Package Quantity
250
Packaging
Tape and Reel
Power Dissipation
1.3W
Quiescent Current
28uA
RoHS Compliant
Yes
Thickness
750um
Topology
Boost
Weight
0.000342oz
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS61040DRVTG4 Datasheet
Download the complete datasheet for Texas Instruments TPS61040DRVTG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

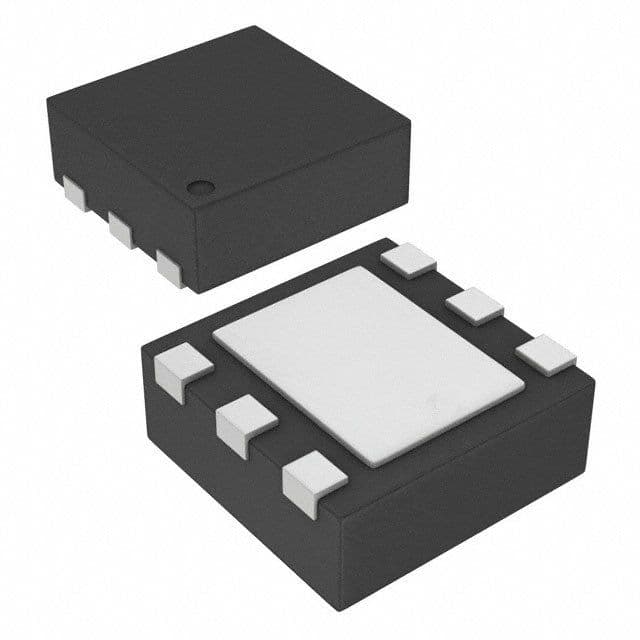

Product Images
