Boost converter IC with adjustable output voltage up to 28V and 250mA output current. Features 1MHz operating frequency, 85% efficiency, and PWM dimming. Operates from 1.8V to 6V input voltage, with a quiescent current of 28uA. Packaged in a 5-pin SOT-23, this lead-free, RoHS-compliant component is suitable for LCD and white LED applications.
Frequency1MHz
PackageSOT-23-5
Power357mW
Quick Jump:
Technical Specifications
Texas Instruments TPS61041DBVR technical specifications.
General
Package/Case
SOT-23-5
Dimming
PWM
Efficiency
85%
Frequency
1MHz
High Level Output Current
50mA
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
1.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Max Output Voltage
28V
Min Output Voltage
1.8V
Max Supply Current
50uA
Max Supply Voltage
6V
Min Supply Voltage
1.8V
Number of Outputs
1
Operating Frequency
1 MHz
Output Current
250mA
Output Current per Channel
215mA
Output Power
357mW
Output Type
Adjustable
Output Voltage
28V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
28uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Topology
Boost
Weight
0.000459oz
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS61041DBVR Datasheet
Download the complete datasheet for Texas Instruments TPS61041DBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

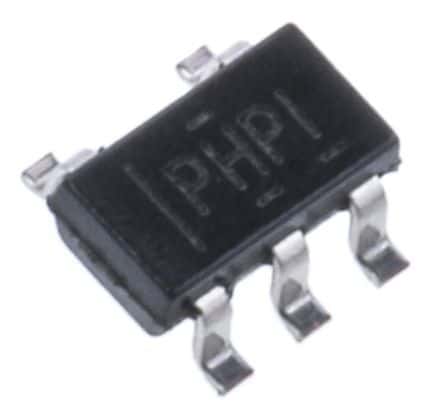

Product Images
