Texas Instruments
TPS61091RSAR
3.3-V Output, 500-mA, 96% Efficient Boost Converter, 20uA, QFN-16 16-QFN -40 to 85
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS61091RSAR technical specifications.
General
Package/Case
VQFN
Efficiency
96%
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
1.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Min Output Voltage
3.3V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
5.5V
Output Configuration
Positive
Output Current
2A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
20uA
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Topology
Boost
Weight
0.001464oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS61091RSAR Datasheet
Download the complete datasheet for Texas Instruments TPS61091RSAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

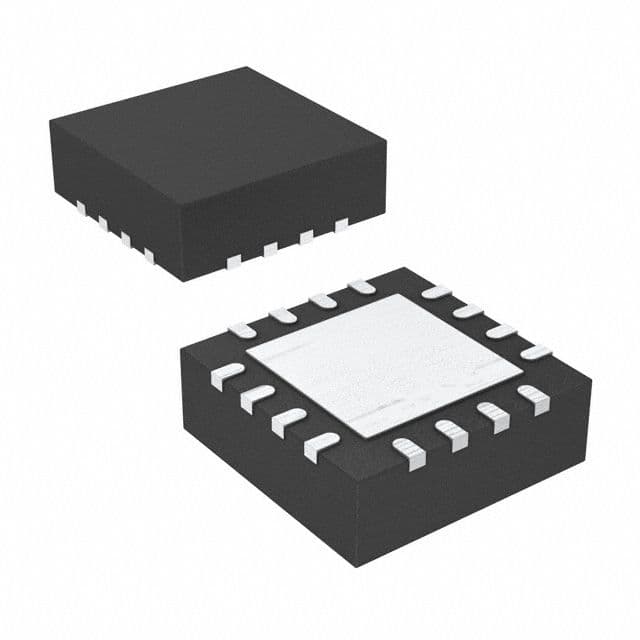

Product Images
