The TPS61092RSARG4 is a boost DC/DC controller from Texas Instruments with a maximum input voltage of 5.5V and an operating supply voltage of 5.5V. It features a maximum output current of 500mA and an output voltage of 5V. The device operates over a temperature range of -40°C to 85°C and is available in a VQFN package. The TPS61092RSARG4 is a lead-free and RoHS compliant device with a quiescent current of 20uA.
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS61092RSARG4 technical specifications.
General
| Package/Case | VQFN |
| Efficiency | 96% |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 1.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5.5V |
| Output Current | 500mA |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 20uA |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| Topology | Boost |
| Weight | 0.001464oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS61092RSARG4 Datasheet
Download the complete datasheet for Texas Instruments TPS61092RSARG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

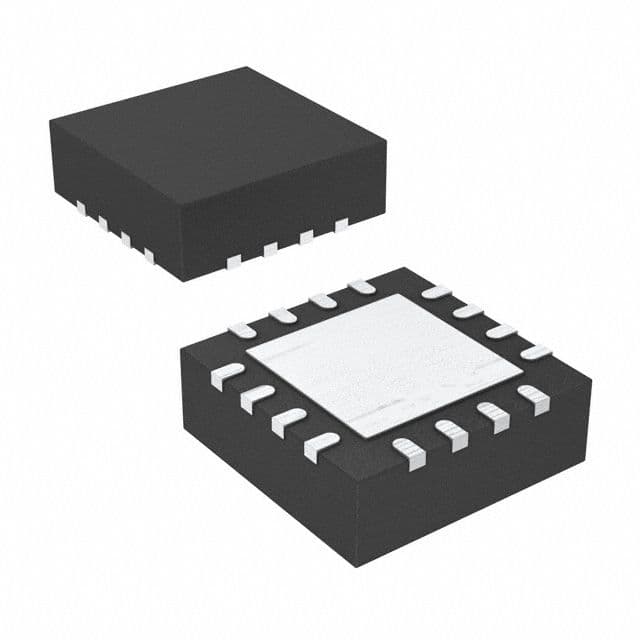

Product Images
