Boost DC/DC converter with integrated power diode, offering 1.6V to 6V input voltage range and up to 17V output voltage. Achieves 88% efficiency with a maximum output current of 900mA at 17V. Features a 1.1A switch current capability, 900µA quiescent current, and operates from -40°C to 85°C. Surface mountable in a 10-SON package, this lead-free, RoHS compliant component is ideal for power management applications.
PackageSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS61093DSKR technical specifications.
General
Package/Case
SON
Efficiency
88%
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
1.6V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Max Output Voltage
17V
Min Output Voltage
1.6V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
6V
Output Configuration
Positive
Output Current
900mA
Output Type
Adjustable
Output Voltage
17V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
900uA
Radiation Hardening
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Topology
Boost
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS61093DSKR Datasheet
Download the complete datasheet for Texas Instruments TPS61093DSKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

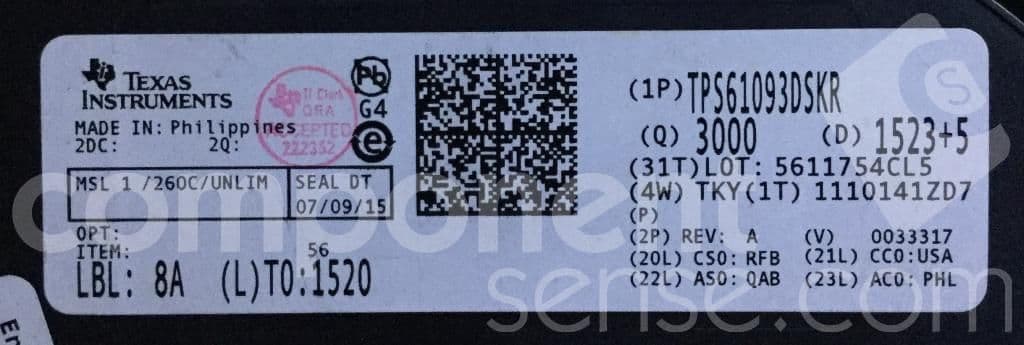

Product Images
