High-efficiency, 88% boost DC/DC converter with integrated power diode, supporting input voltages from 1.6V to 6V and delivering up to 1A output current. Features adjustable output voltage up to 17V, with a maximum output current of 300mA at 17V. Operates across a wide temperature range of -40°C to 85°C, housed in a 10-SON surface-mount package. This lead-free, RoHS-compliant component is ideal for power management applications requiring low input voltage operation.
PackageSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS61093DSKT technical specifications.
General
Package/Case
SON
Efficiency
88%
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
1.6V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Max Output Voltage
17V
Min Output Voltage
1.7V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
6V
Output Current
1A
Output Type
Adjustable
Output Voltage
17V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
900uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Topology
Boost
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS61093DSKT Datasheet
Download the complete datasheet for Texas Instruments TPS61093DSKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

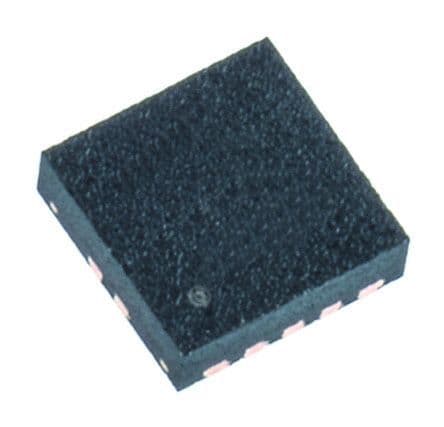

Product Images
