Texas Instruments
TPS61103RGER
Dual Output Converter (Boost DC/DC + LDO) for Single/Dual-Cell Applications 24-VQFN -40 to 85
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments TPS61103RGER technical specifications.
General
Package/Case
VQFN
Current - Output 1
1.8A
Current - Output 2
500mA
Efficiency
95%
Lead Free
Lead Free
Max Input Voltage
3.3V
Min Input Voltage
800mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Number of Outputs
2
Operating Supply Voltage
3.3V
Output Current
270mA
Output Voltage
3.6V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
65uA
RoHS Compliant
Yes
Series
TPS61103
Topology
Boost
Voltage - Output 1
3.3V
Voltage - Output 2
3.6V
Weight
0.001524oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS61103RGER Datasheet
Download the complete datasheet for Texas Instruments TPS61103RGER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

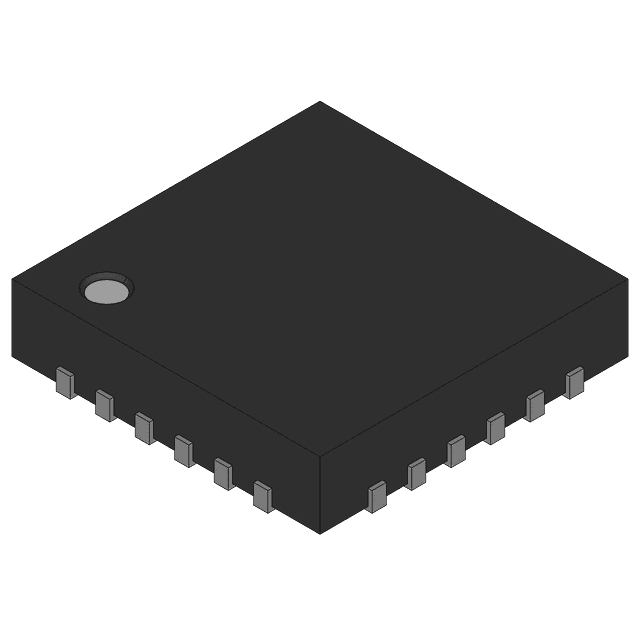

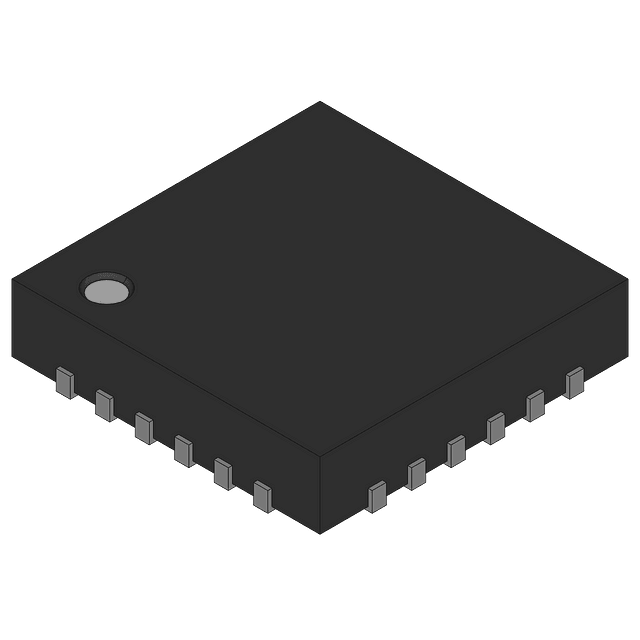

Product Images
