6-channel white LED driver with a 1MHz switching frequency, capable of delivering up to 1.5A maximum output current. This boost topology IC operates from a 2.7V to 3.6V supply voltage, supporting an input voltage range of 5V to 24V. Features PWM dimming and a maximum output voltage of 38V, with 25mA output current per channel. Packaged in a 16-WQFN, this lead-free and RoHS compliant component operates across a temperature range of -40°C to 85°C.
Frequency1MHz
PackageQFN
Power2.05W
Quick Jump:
Technical Specifications
Texas Instruments TPS61180RTETG4 technical specifications.
General
Package/Case
QFN
Dimming
PWM
Frequency
1MHz
Lead Free
Lead Free
Low Level Output Current
25mA
Max Input Voltage
24V
Min Input Voltage
5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Power Dissipation
2.05W
Max Supply Voltage
3.6V
Min Supply Voltage
2.7V
Number of Channels
6
Number of Outputs
6
Number of Segments
60
Operating Supply Voltage
3.15V
Output Current per Channel
25mA
Output Voltage
38V
Package Quantity
250
Packaging
Tape and Reel
Power Dissipation
2.05W
Quiescent Current
2mA
Radiation Hardening
No
RoHS Compliant
Yes
Topology
Boost
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS61180RTETG4 Datasheet
Download the complete datasheet for Texas Instruments TPS61180RTETG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

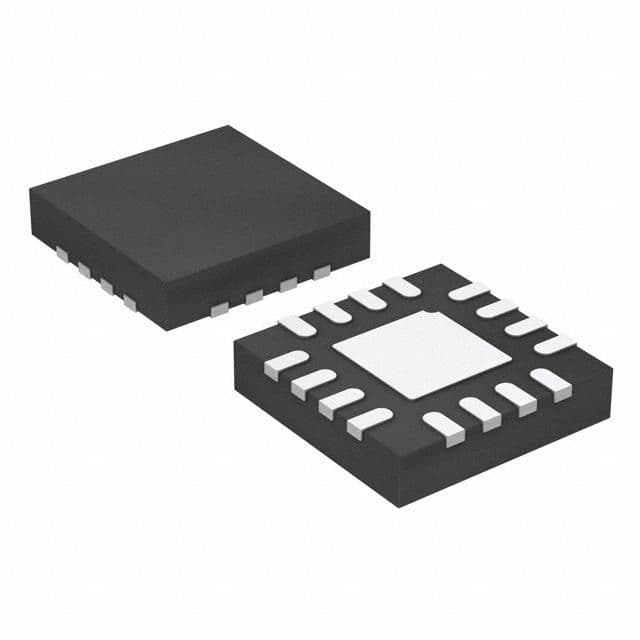

Product Images
